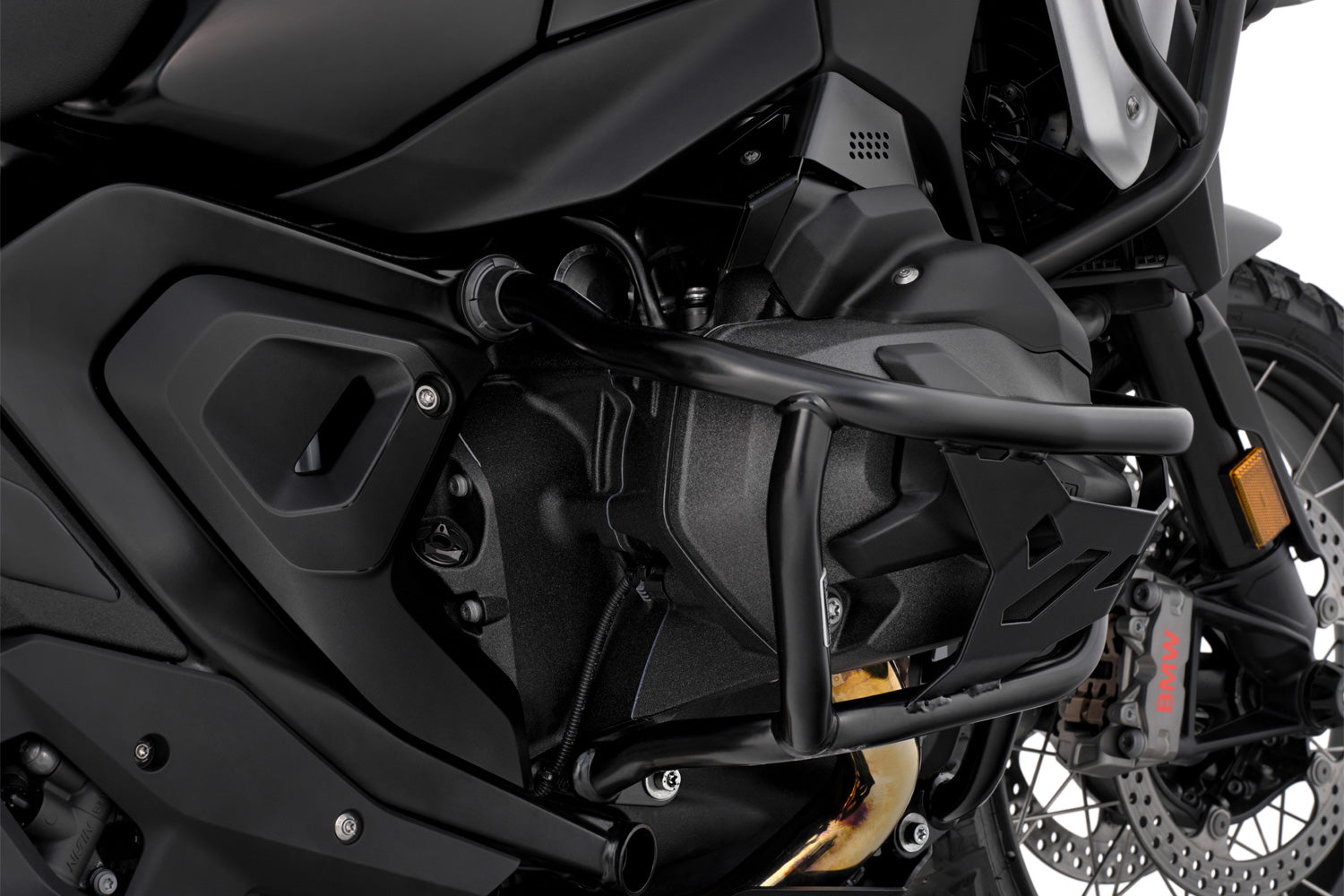

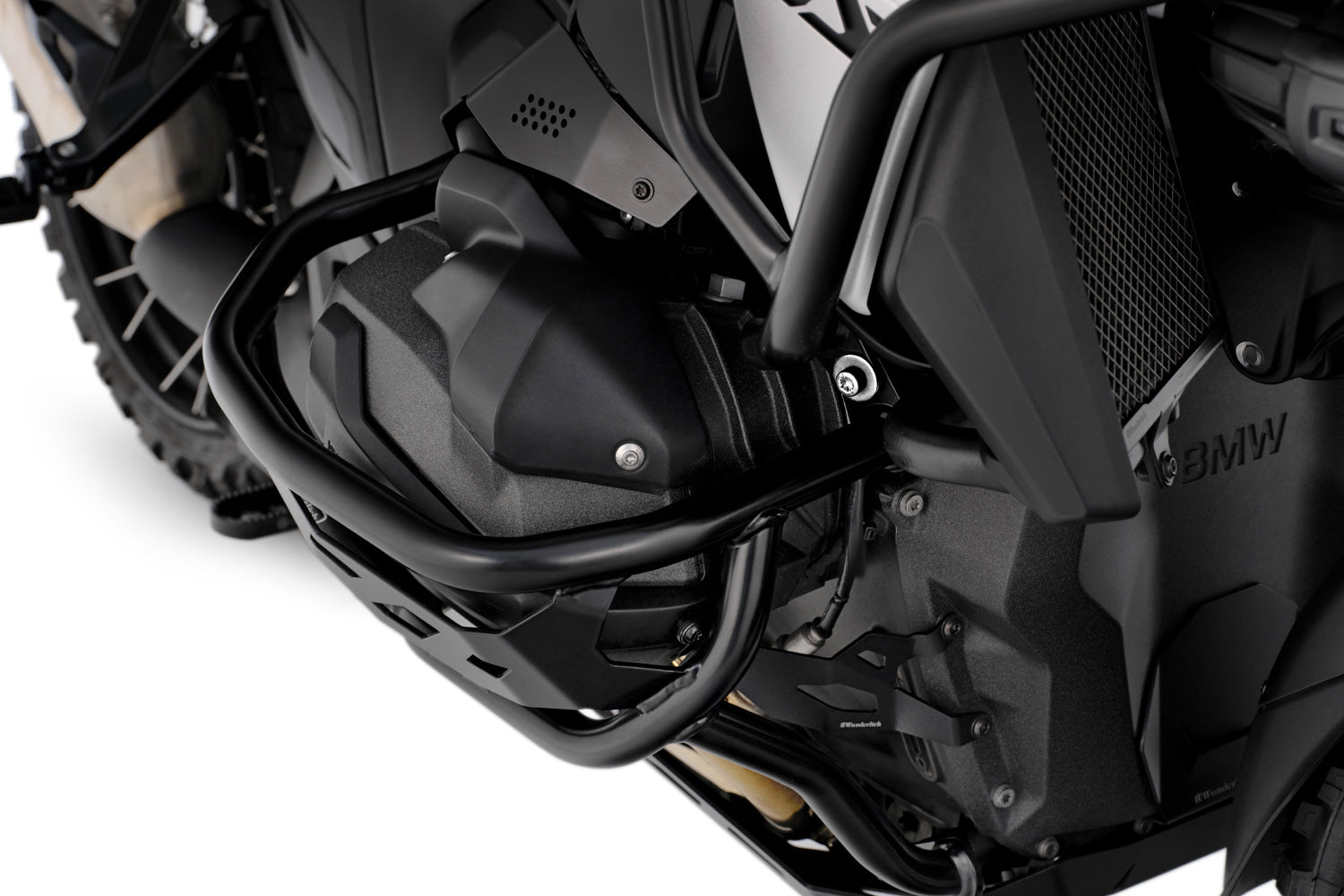

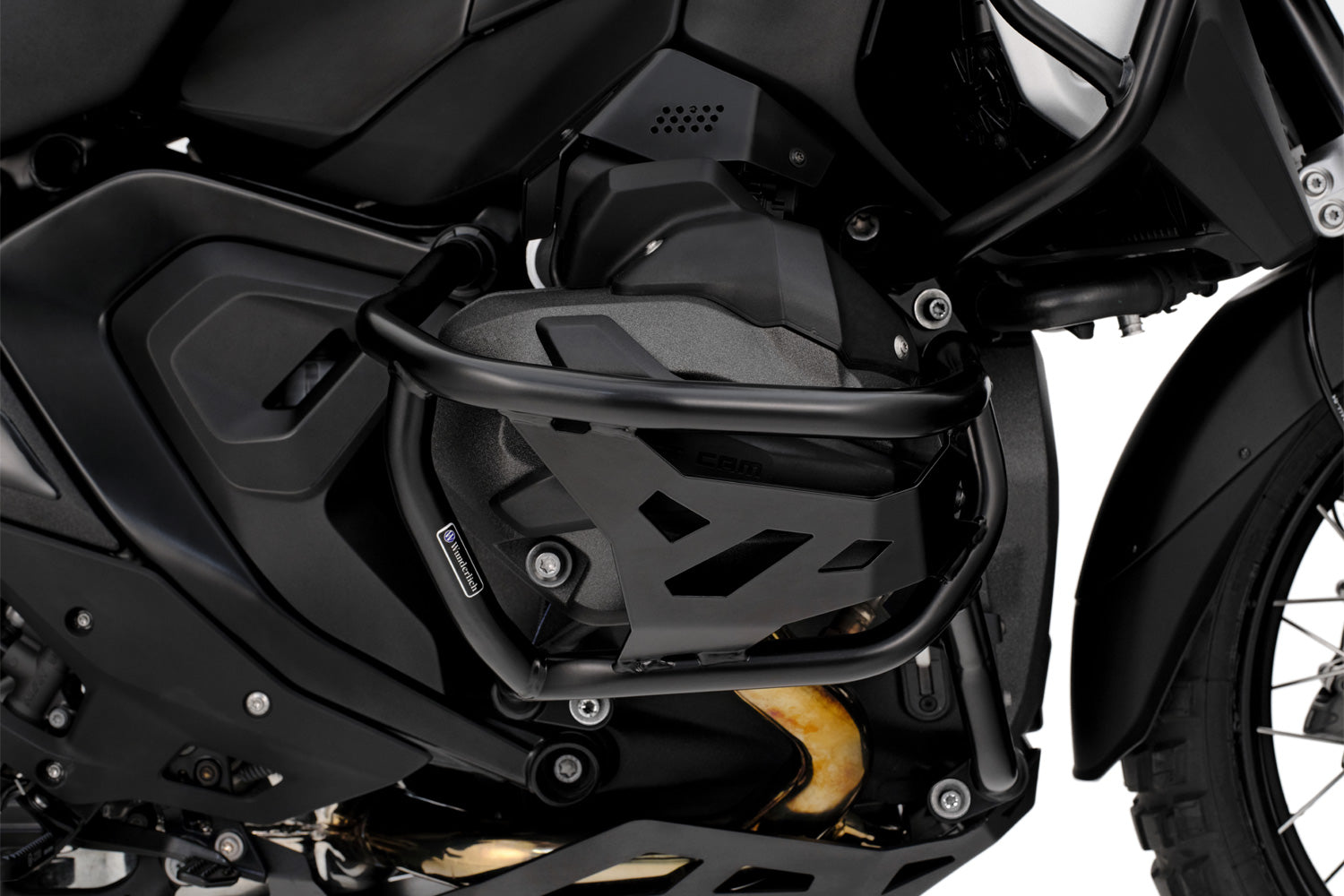

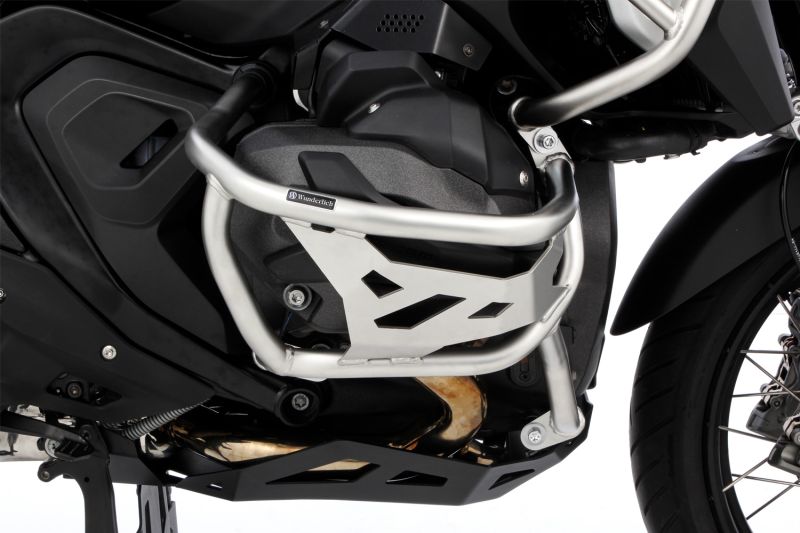

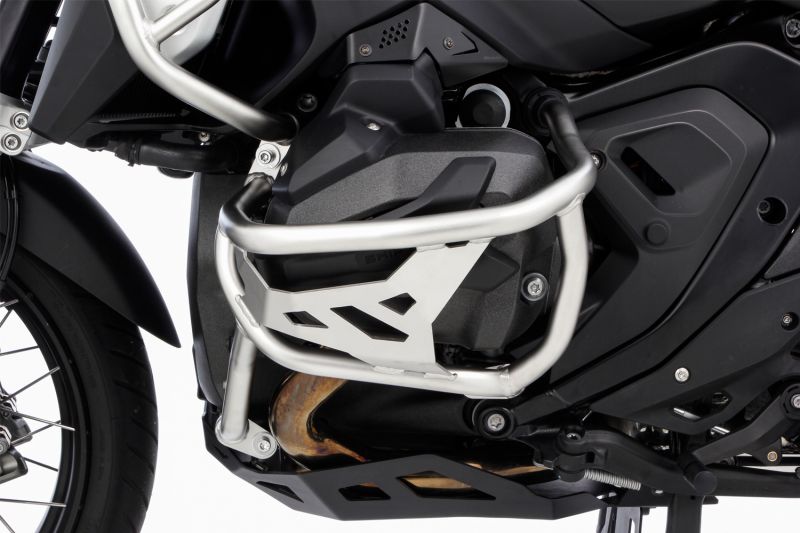

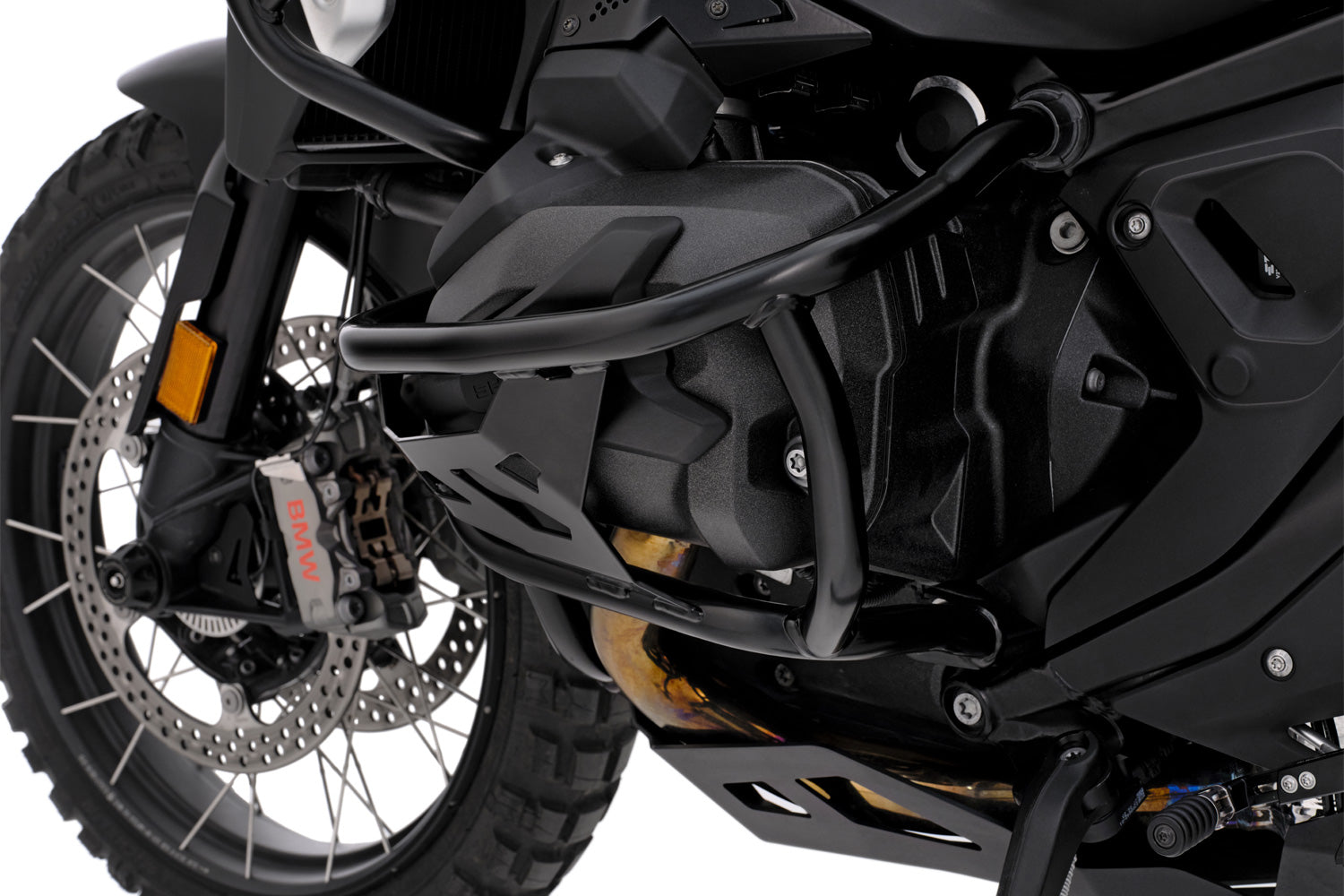

Wunderlich Engine Protection Bar Ultimate Pro for BMW R 1300 GS

Function and product features

• Wunderlich ULTIMATE engine protection bars are uncompromisingly designed to deliver optimal protection for adventure riding
• The ULTIMATE PRO features, compared to the ULTIMATE bar, an additional, robustly built PROtection plate
• which extends protection to the cylinder head and valve cover
• and whose tool-style design clearly emphasises the adventure look
• Maximum protection through additional structural reinforcement that significantly increases bar stiffness
• Perfect protection of cylinders, valve covers and both lambda sensors reduces the risk of costly motorcycle damage
• Even distribution of forces across four mounting points per vehicle side
• Bar routing is precisely aligned with the contour of the boxer engine
• No impairment of ground clearance
• Cut-outs allow splash water or river water to drain freely during crossings
• Maintenance-friendly: oil change with filter cartridge possible without removing the bar
• Plug & Play fit: easy installation including detailed fitting instructions

Compatibility note

• Also compatible with:
• the original BMW cylinder head cover protector
• and the original Option 719 milled ignition coil cover

Additional note

• Also compatible with the original BMW cylinder head cover protector

Note and our recommendation

Bikes are often designed so that – when an engine protection bar is installed – the footrest and the bar make contact with the ground at nearly the same lean angle, which is generally safe in terms of tyre grip. It’s important to note that factors like bike load or hitting a dip or pothole may reduce the available lean angle.

For riders who want greater margin before making contact with the road, we have developed our lean angle indicators, which can be easily mounted on the outer side of the original Enduro footrests (#13515-200), Option 719 footrests (#13515-302) or standard footrests (#13515-100).

Technical data

• Material
  • High-quality precision steel with excellent tensile strength and elongation, carefully handcrafted, precisely shaped bends, clean weld seams, and accurate joints, powder-coated
• Dimensions
  • Tubing diameter: 25 mm
  • PROtection plate thickness: 3 mm
• Weight
  • 5.5 kg
• Colour
  • Black

Your Wunderlich advantages

• Wunderlich premium product. Small batches. Handcrafted.
• Wunderlich design. Integrated and functional.
• Made in Germany
